HARMAN KARDON T55C

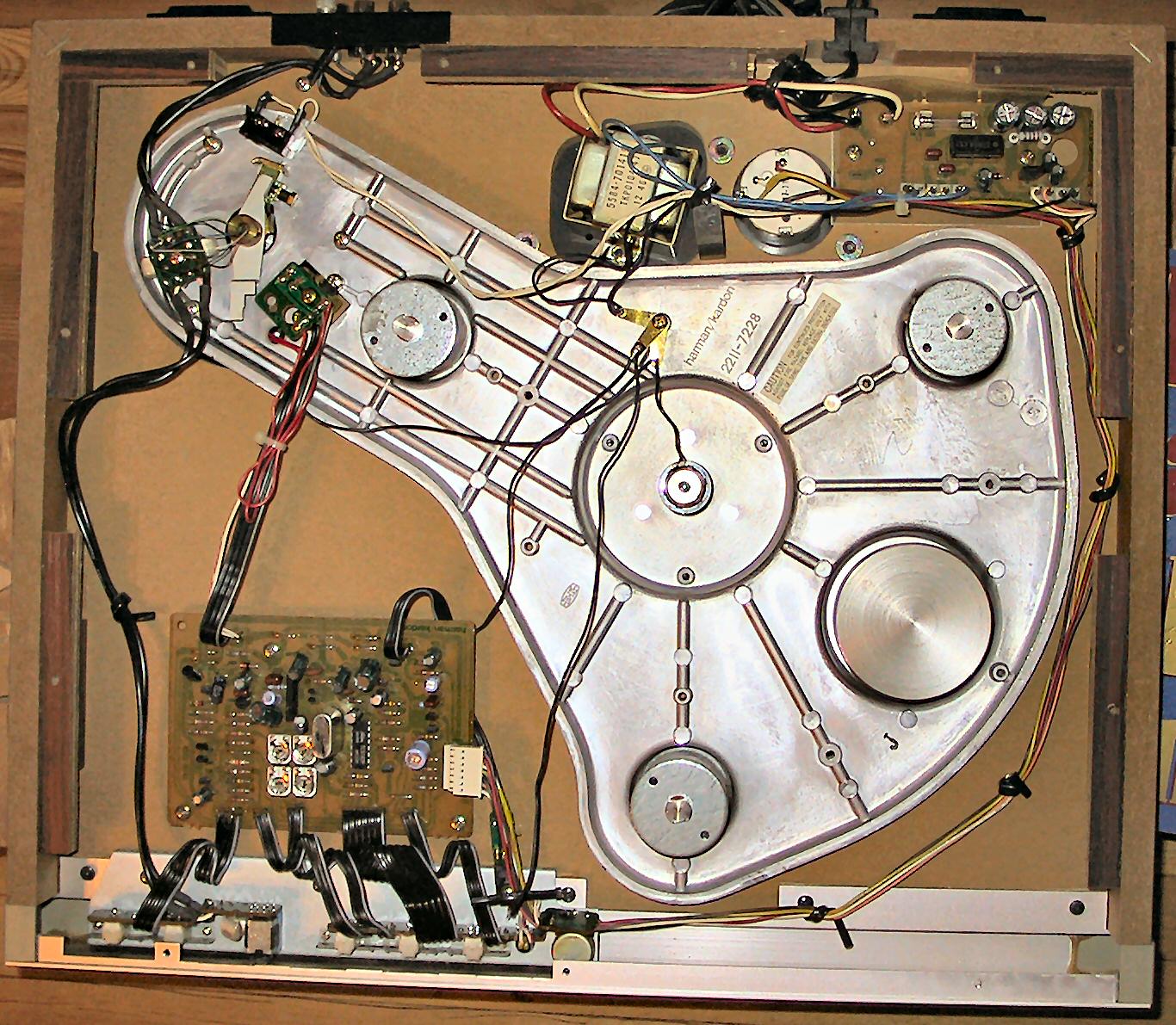

Photo of the underside of the turntable before the Van Alstine power supply mod. You can download instructions at avahifi.com.
1983/09 Harman-Kardon
T-60 Turntable
Test reports on a very nice H-K turntable.
1984/05 Harman-Kardon
T-25 Turntable .5 pages
Description of the work we do to a H-K Turntable to make it free from hum and
AC fields.
1985/06 Harman-Kardon Turntables
1 page
A few comments on improving the performance of the turntables with liquid silicon
and the difference between the models.
1985/12 Harman-Kardon T-60
Turntable Rebuild 4 pages
Complete instructions to build your own external power supply for the Harman-Kardon
T-60 turntable, thereby isolating your turntable from hum fields and mechanical
vibrations.
1986/10 Harman-Kardon T-60
Update .5 pages
An update to the instructions for the H-K T-60 turntable upgrade project detailed
in 12/85. The new instructions work with recent variations in the H-K power
supply card.
The power supply mod involves removing the transformer and diode bridge and installing them into a stand alone box. This mod removes micro vibrations resulting in a blacker background, the added capacitors improve the speed stability. I have found listening with the Quartz Lock off improves the sound.

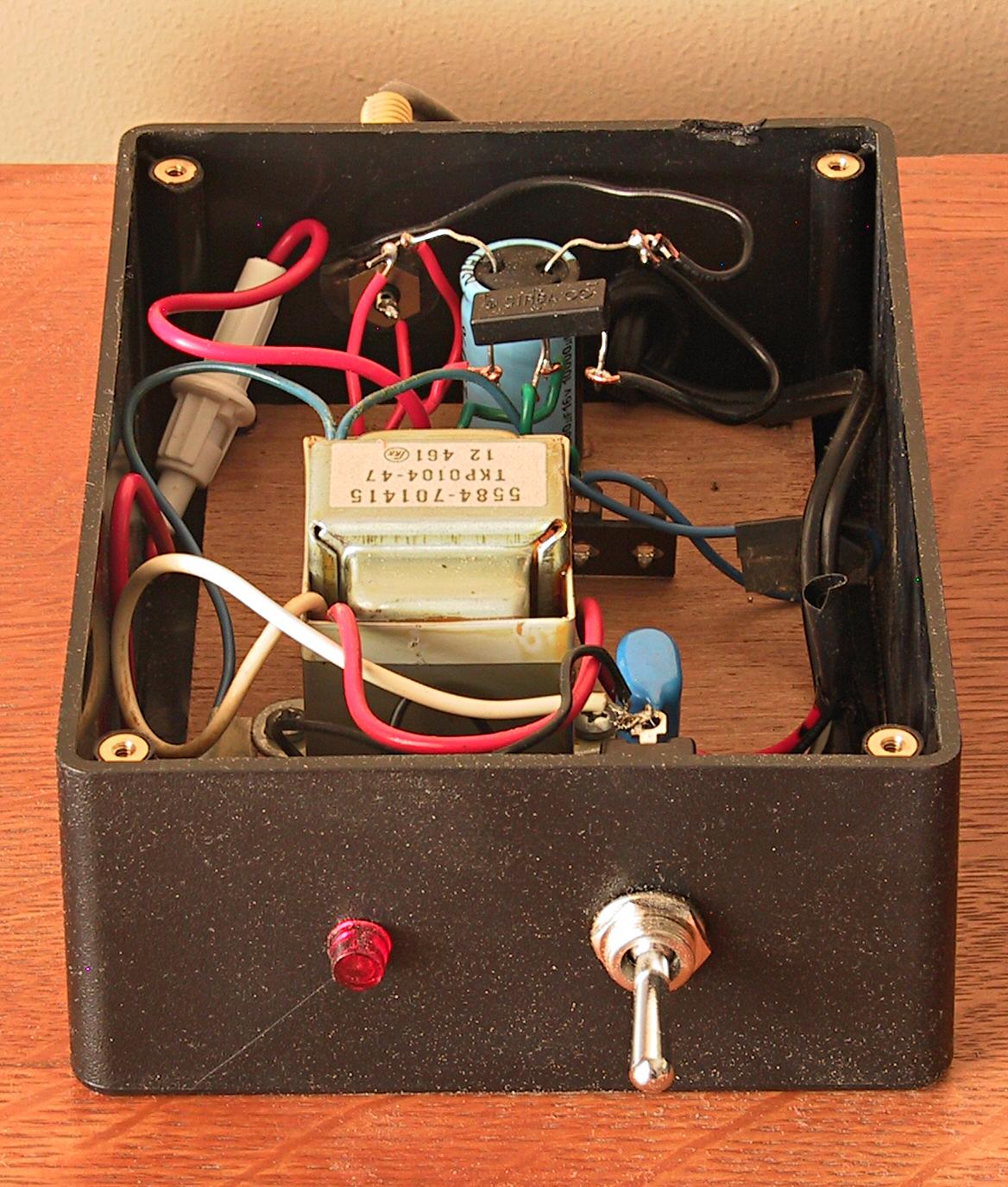

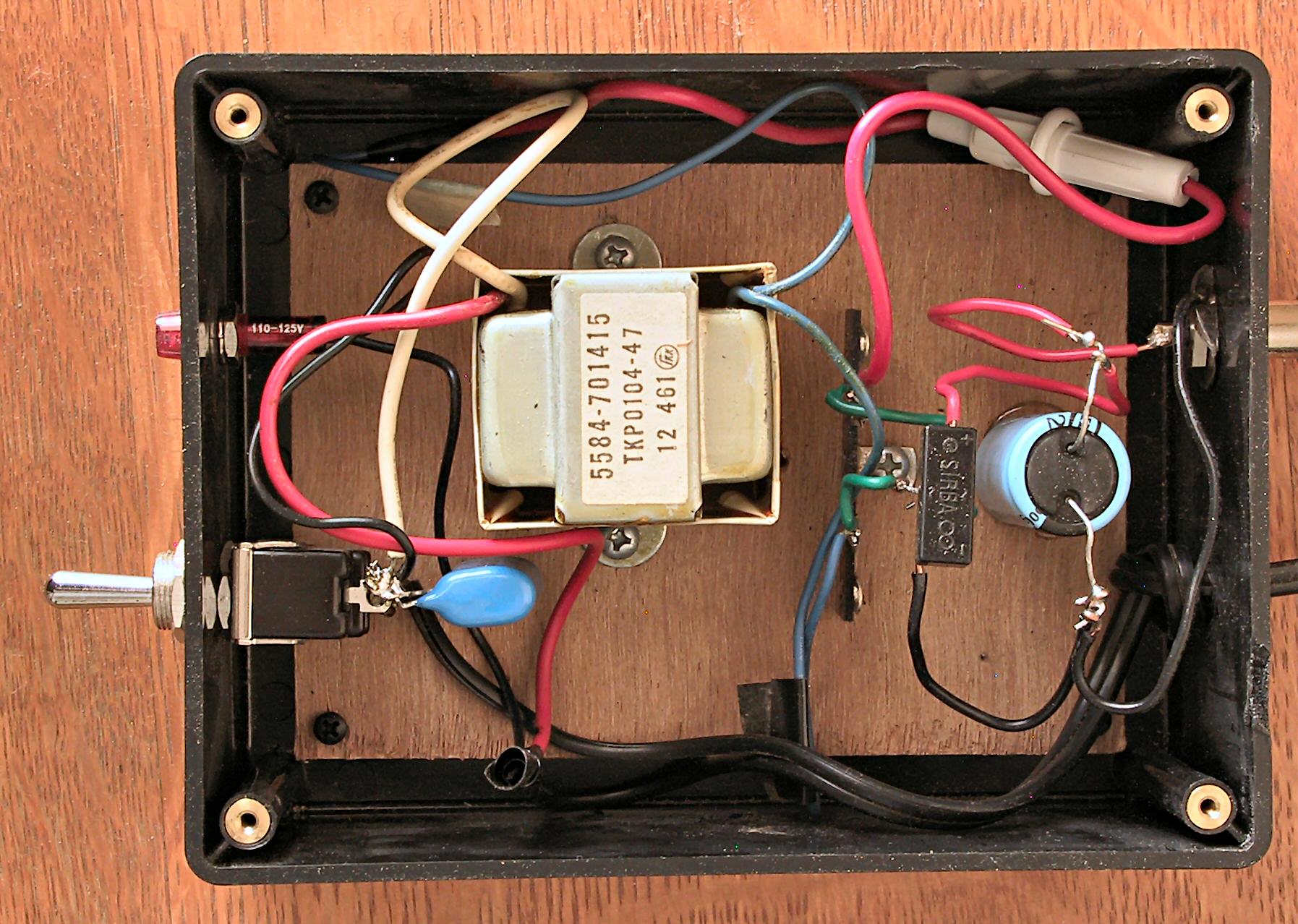

The next two photos show the new outboard power supply. It won't win any beauty contest, but it works and sounds great!
